Dimensions of Toast Hardware

In this Article:

• Networking Devices
  • Toast Router
  • Toast Switch
  • Wireless Access Point
• Terminals and Handhelds
  • Toast Flex 3 Countertop Terminal
  • Toast Flex 14"
  • Toast Flex 3 Guest Display
  • Toast Flex for Guest
  • Toast Flex for Kitchen (Toast Flex 22)
  • Toast Go® 2
  • Toast Go® 3
  • Toast Go® 3 Charging Dock
• Toast Printers
  • TP300 Toast Printing Hub
  • TP200 Toast Receipt Printer
  • Toast Kitchen Printer
  • TLP400 Toast Label Printer
• Card Readers for US Restaurants
  • Toast Tap™ On-Counter
• Card Readers for Non-US Restaurants
  • S1 Handheld
  • P400
• Toast POS Accessories
  • Brecknell 6710U Scale (US Only)
  • CAS PD-II (US Only)
  • Zebra DS2208 Scanner
  • Zebra DS2278 Wireless Scanner
  • Zebra DS9308 Scanner
  • Toast Cash Drawer

Networking Devices

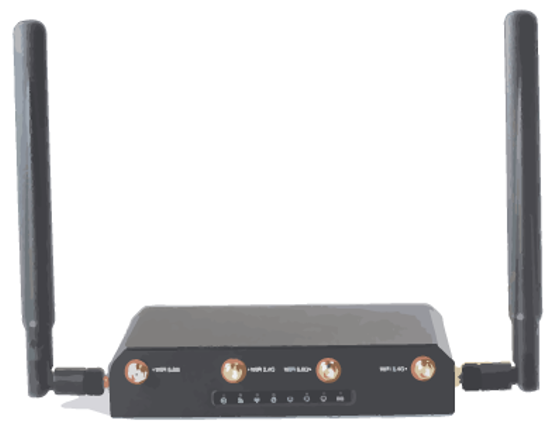

Toast Router

The dimensions of a Toast router (without antennae) are:

• 6.5” L x 3.8” W x 1.5" H
• 16.5 cm L x 9.7 cm W x 3.8 cm H

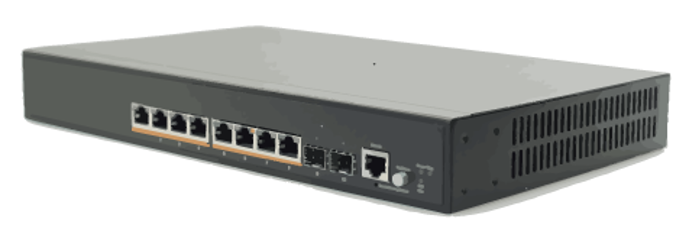

Toast Switch

Toast offers different sizes of switches. The dimensions of a Toast switch are listed below:

• From 7.7” L x 4.6” W x 1.4" H up to 17.3” L x 8.6” W x 1.7" H
• From 19.6 cm L x 11.7 cm W x 3.6 cm H up to 44 cm L x 21.9 cm W x 4.3 cm H

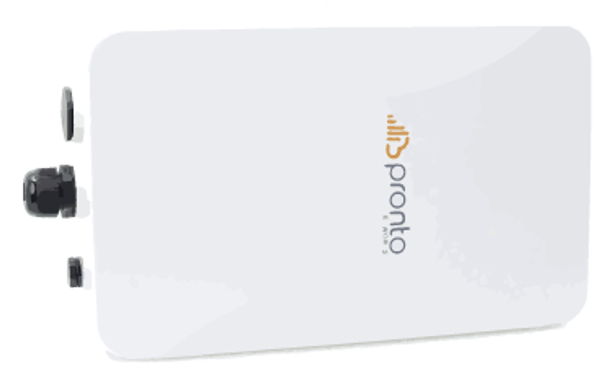

Wireless Access Point

Toast offers two different wireless access points (WAPs). The dimensions of both WAPs are listed below:

• Indoor: 7.4" L x 7.4" W x 1.4" H
  • 18.8 cm L x 18.8 cm W x 3.6 cm H
• Outdoor: 12" L x 7" W x 2.4" H
  • 30.5 cm L x 17.8 cm W x 6.1 cm H

Terminals and Handhelds

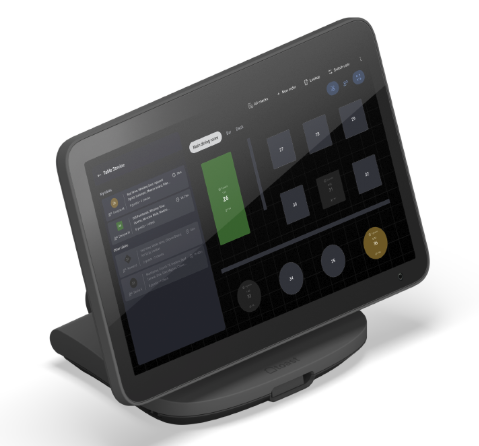

Toast Flex 3 Terminal

The dimensions of a Toast Flex 3 Terminal (with the stand) at its highest position are:

• 13.70" L x  x 9.74" W x 7.25 H
• 34.80 cm L × 24.74 cm W × 18.42 cm H

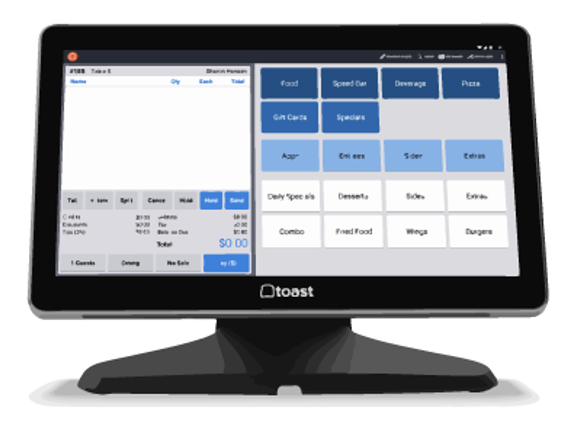

Toast Flex 14"

The dimensions of a Toast Flex 14 (with the stand) at its highest position are:

• 16.7” L x 7.2” W x 9.8" H
• 34.7 cm L x 18.2 cm W x 25 cm H

Toast Flex 3 Guest Display

• 5.71" L x 4.18" W x 5.08" H
• 14.50 cm L × 10.62 cm W × 12.90 cm H

Toast recommends a clearance space around the terminal and guest display footprint for attaching other devices, cable routing, and a better user interaction.

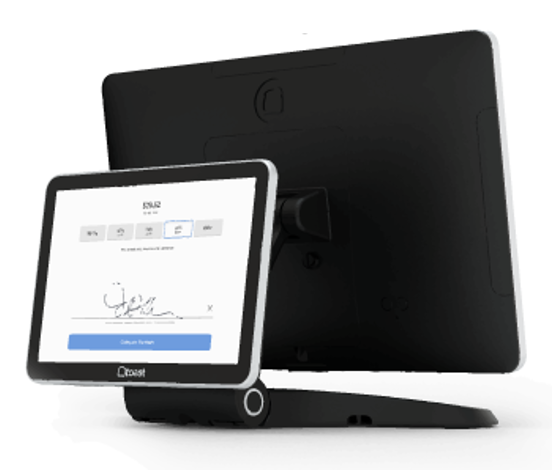

Toast Flex for Guest

The dimensions of a Toast Flex for Guest when it's attached to a terminal (see the above image) are the same as a Toast Flex 14, but with an added width dimension:

• 16.7” L x 10.2” W x 9.8" H
• 34.7 cm L x 25.8 cm W x 25 cm H

The dimensions of a Toast Flex for Guest when it uses a wedge mount are:

• 8.1” L x  6.1” W x 3.1” H
• 20.5 cm L x 14.5 cm W x 8 cm H
• Toast recommends leaving at least 2" (5 cm) around the guest-facing display for cable routing and a better guest experience.

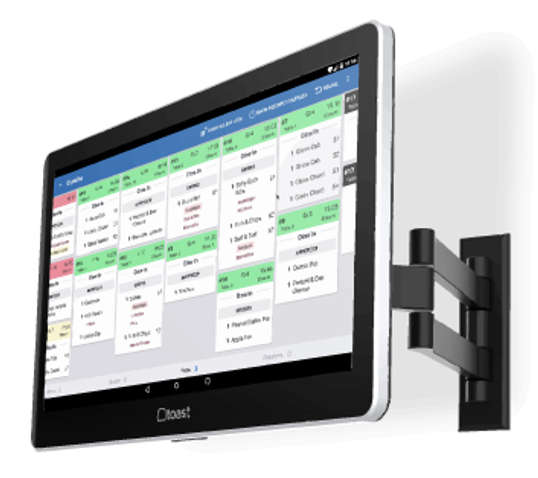

Toast Flex for Kitchen (Toast Flex 22)

The dimensions of a Toast Flex for Kitchen (without the arm mount or stand) are:

• 20.6" L x 1.3” W x 12.6" H
• 52.4 cm L x 3.2 cm W x 31.9 cm H

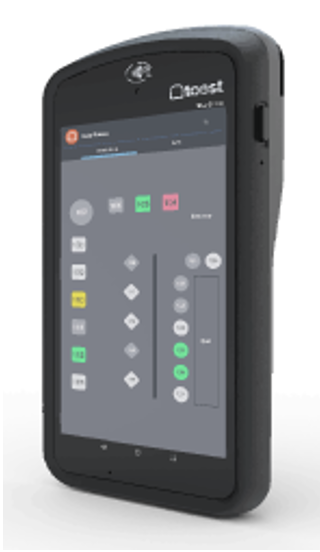

Toast Go® 2

The dimensions of a Toast Go® 2 are:

• 7.9" L x 0.8" W x 3.7" H
• 20 cm L x 2 cm W x 9.5 cm H

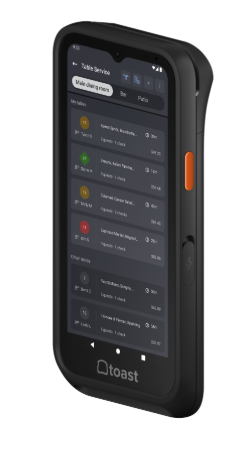

Toast Go® 3

The dimensions of a Toast Go® 3 are:

• 7.44'' L  x 3.54'' W x 1.37'' H
• 18.90 cm L × 8.99 cm W × 3.48 cm H

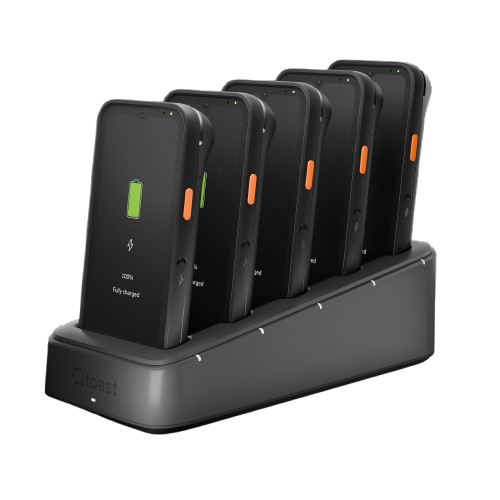

Toast Go® 3 Charging Dock

The dimensions of a Toast Go® 3 charging dock are:

• 5.12" L x 10.91" W x 3.35" H
• 13.0 cm L x 27.7 cm W × 8.5 cm H

Toast Printers

TP300 Toast Printing Hub

The dimensions of the TP300 Toast Printing Hub are:

• 5.32" (L) x 5.66" (W) x 9.74" (H)

  • 13.51 cm (L) × 14.38 cm (W) × 24.74 cm (H)
• Front Clearance: 4.33"
• Side Clearance: 2"

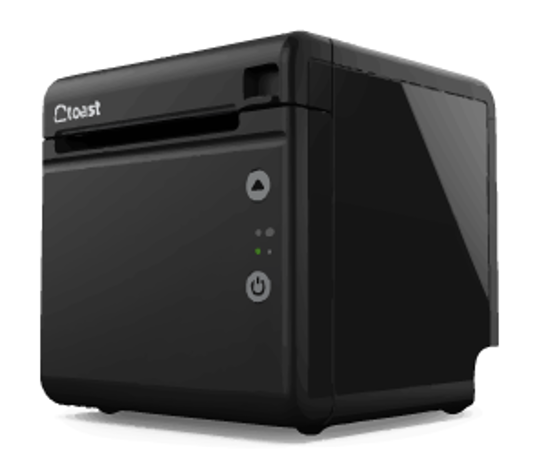

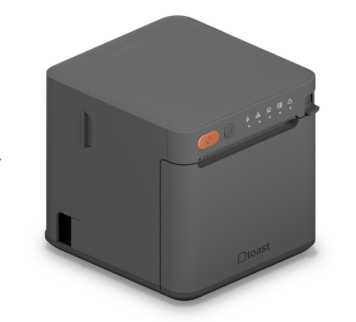

TP200 Toast Receipt Printer

The dimensions of a TP200 Toast receipt printer are:

• 5.2" L x 5.5" W x 5.4" H
• 13 cm L x 13.9 cm W x 13.7 cm H
• We recommend 2" (5 cm) of clearance in the back for cable routing and 4.2" (10.6 cm) of clearance in the front to open the paper compartment.

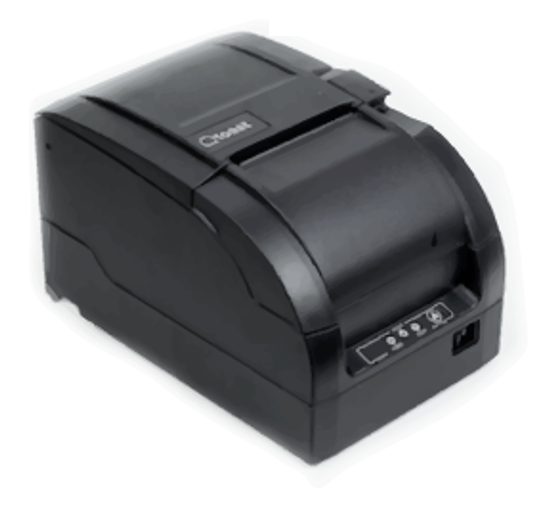

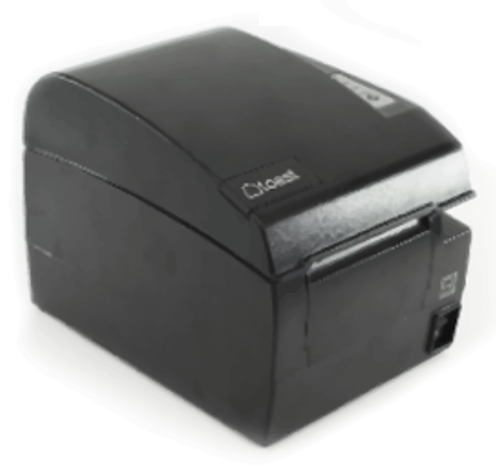

Toast Kitchen Printer

The dimensions of a Toast kitchen printer are:

• 6.3" L x 9.6" W x 6" H
• 16 cm W x 24.5 cm L × 15.4 cm H
• Toast recommends 2" (5 cm) of clearance in the back for cable routing and 6" (14.5 cm) of clearance above the printer to open the paper compartment.

TLP400 Toast Label Printer

The dimensions of a TLP400 Toast label printer are:

• 8.1” L x  6.2” W x 6.3” H
• 20.6 cm L x 15.8 cm W x 16 cm H
• Toast recommends 2" (5 cm) of clearance in the back for cable routing and 6" (14.5 cm) of clearance above the printer to open the paper compartment.

Card Readers for US Restaurants

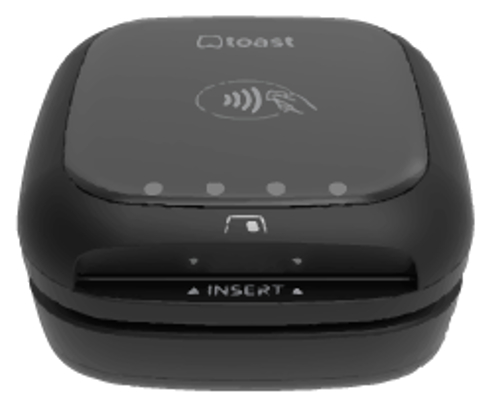

Toast Tap™ On-Counter

The dimensions of a Toast Tap™ on-counter are:

• 3.2" L x 3.2" W x 1.8" H
• 8.2 cm L x 8.2 cm W x 4.6 cm W
• Toast recommends at least 1" (2.5 cm) of clearance on either side so a guest can swipe their card.

Card Readers for Non-US Restaurants

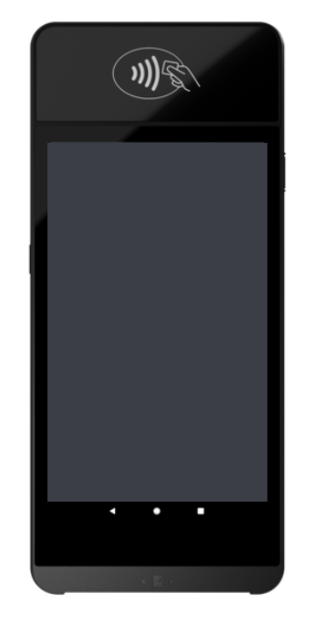

S1 Handheld

The dimensions of an S1 handheld are:

• 6.6" L x 3" W x 1" H
• 16.8 cm L x 7.7 cm W x 2.54 cm H

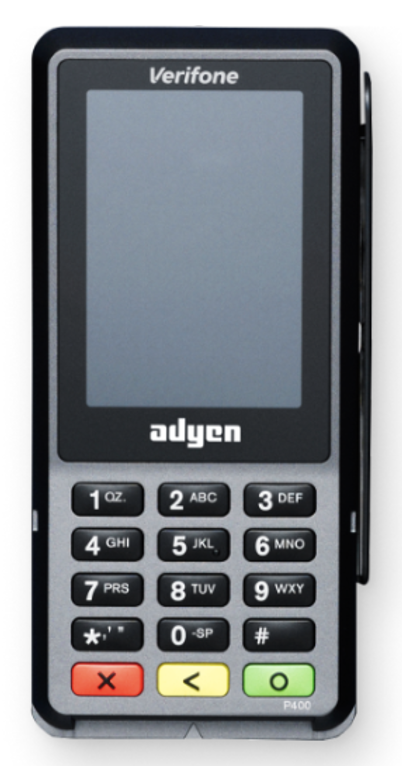

P400

The dimensions of a P400 card reader are:

• 3.1" L x 6.6" W x 1.7" H
• 8 cm L x 16.7 cm W x 4.4 cm H

Toast POS Accessories

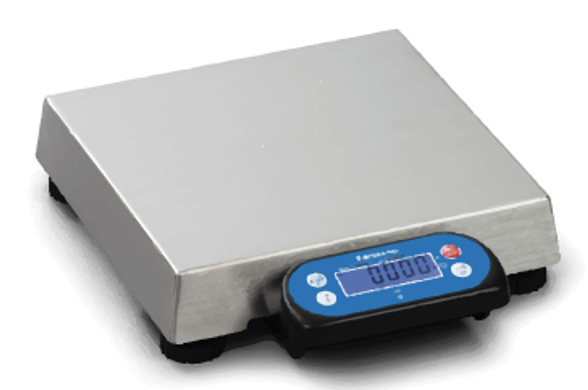

Brecknell 6710U Scale (US Only)

The dimensions of a Brecknell 6710U scale are:

• 10.5 " L x 10.5" W x 2.8" H
• 26.7 cm L x 26.7 cm W x 7.1 cm H
• Toast recommends at least 2" (5.1 cm) of clearance in the back for cable routing.

CAS PD-II Scale (US Only)

The dimensions of a CAS PD-II scale are:

• 11" L x 15" W x 3.5" H
• 27.9 cm L x 38.1 cm W x 8.9 cm H

Zebra DS2208 Scanner

The dimensions of the Zebra DS2208 scanner (without the cradle) are

• 3.9" L x 2.6" W x 6.5" H
• 9.9 cm L x 6.6 cm W x 16.5 cm H

Zebra DS2278 Wireless Scanner

The dimensions of the Zebra DS2278 wireless scanner (without the cradle) are

• 3.5" L x 2.6" W x 6.9" H
• 9 cm L x 6.6 cm W x 17.5 cm H

Zebra DS9308 Scanner

The dimensions of the Zebra DS9308 scanner are

• 3.3" L x 3.4" W x 5.7" H
• 8.3 cm L x 8.6 cm W x 14.5 cm H

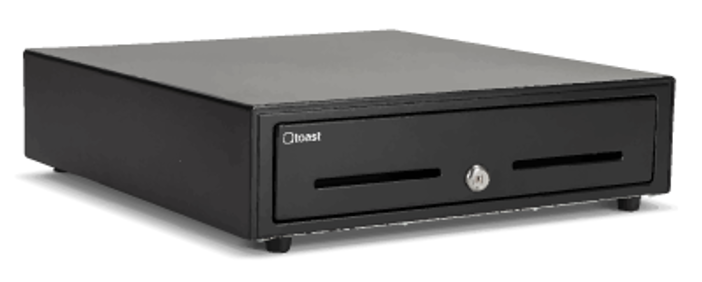

Toast Cash Drawer

The dimensions of a Toast cash drawer are:

• 16.1” L x  16.3” W x 4.4” H
• 41 cm L x 41.5 cm W x 11.3 cm H
• We recommend a 12" (31.3 cm) clearance in front of the drawer to fully open it.
