Toast Item Label Printer Quick Start Guide



Error	Error LED	Paper LED	Buzzer
Print head overheating	Cycle flash 6 times	Off	Long-Short-Long
Input voltage abnormal	Cycle flash 5 times	Off	Short-Short-Long
Cutter error	Cycle flash 4 times	Off	Long-Short-Long
Cover Is open	Cycle flash 3 times	Off	Short-Long-Short
Paper end	Cycle flash 2 times	On	Short-Short-Short
Label location failure or calibration error	Cycle flash	Off	N/A



Install and Configure Your Printer

To install your printer and set it up, follow the steps below:

Note: You need to make sure that your POS app is running on 2.69.6 or above.

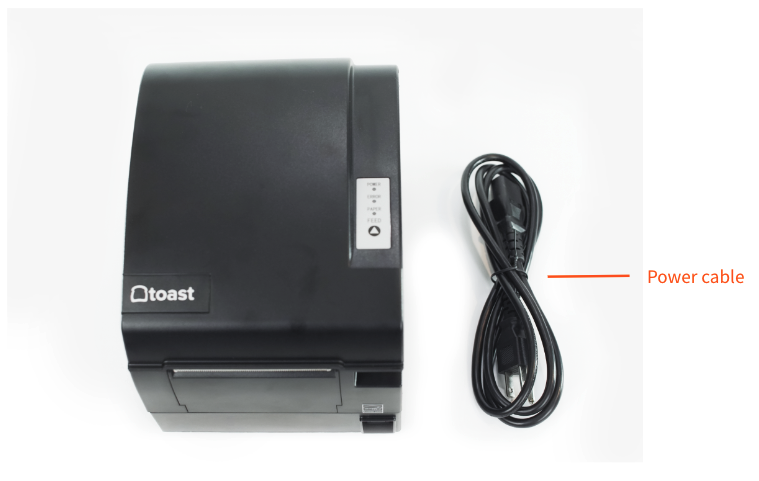

1. Begin by unboxing your printer and everything that is in the box.

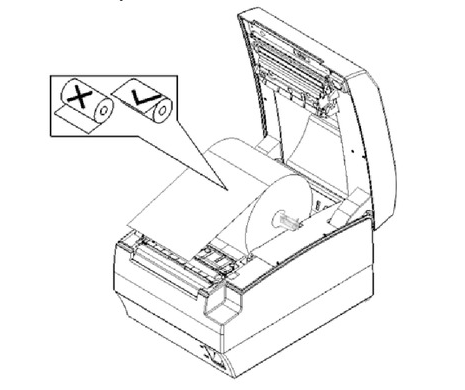

2. Next, install the paper roll so the paper feeds from the top of the roll as shown in the image below:


3. Once your paper has been added, navigate to the Toast app main menu and select Printer Setup from the Setup section to configure your printer.
4. Select + Add or replace printer.
5. Select Install a new printer or Install a replacement printer depending on your setup needs.
6. Next, select Wired when asked if you are setting up a wireless or wired printer. Select Next.
7. Follow the steps in the printer setup workflow. Plug in and turn on your printer. Connect the Ethernet and power cables. Your power cable should connect directly to an outlet and the Ethernet cable should connect directly to your network switch or router.
8. Select Find my printer on the POS screen. It can take about 20 seconds for it to find your printer. Toast TLP400 should appear on the screen. Once it does, select Continue.
9. Next, select whether you'd like to apply an existing printer setting (recommended if you are replacing a label printer) or select Use different settings if you're setting up a new printer.
10. If using different settings, select Item Labels on the next screen. Select Continue.
11. Next, select your preferred Label Size from Small - Vertical, Small - Horizontal, Medium - Horizontal, or Large - Square. Select Continue.
12. If you selected the Large label size, there are no additional formatting options at this stage and you'll skip ahead to the next step. If you selected any of the Small or Medium label sizes, the app will prompt you to select a Label Format that will change what information is emphasized in the label header (either Guest Name or Ticket Number). Select Continue.
13. Next, the app will prompt you to select a prep station. If you're replacing a label printer at an existing prep station, select that same prep station. If you're setting up a label printer at a new prep station, select .  To set up a new prep station, check out the steps outlined in the  article. You'll need to assign the appropriate printer to the prep station.



Need help setting up or printing your labels? Read more in our  article.



Additional Configuration for Non-Default Label Sizes

If your restaurant uses label sizes different from the 3" x 3" default size and you've only completed the steps above, your printer will probably print blank labels. To set up the printer for labels of different sizes (i.e. 3" x 2", 3" x 1.5" or 1.5" x 3"), follow these steps:

1. Power off the printer.
2. Power the printer on while holding the Feed button down.
3. The printer should feed two labels and stop. The printer should print MAIN MENU.
   1. If it does not stop, check out .
4. Calibration is number 3, so press the Feed button three times, then push and hold Feed one time.
5. The printer should print SELECT CALIBRATION MODE.
6. Now press the Feed button two times and then push and hold Feed one more time.
7. The printer will feed several labels and stop. There should be some calibration data printed on the last label.
8. Press the Feed button once and then push and hold Feed one more time.
9. The printer should feed one or two labels and stop.
10. Now press the Feed button and one label should feed out.





Frequently Asked Questions

What kind of labels does the Toast Item Label printer use and where can I purchase them?

Can I use this printer in my kitchen?

Yes, you can, but note that the temperature of the print head is detected by a thermal resistor. If the print head is overheating, the protective circuit will shut off the power and force the printer to stop printing; the temperature of print head when printing is stopped is 65℃.



How do I set up and print the sticky labels?

Follow the steps in our  article.



What if I want to change to a different label size?

You can manage your existing printers in . Navigate to Payments > Checks & receipt setup > Printers and cash drawers and select the label printer you'd like to adjust. On the printer's detail page, you can make changes to label size, format, font size, and more. Make sure to use a paper roll size that is compatible with the label size you choose. Note: Label printers are compatible with the Wide (76-80 mm) paper width setting only. The Narrow paper width setting is not compatible with item label paper. Learn more about  for each printer type that Toast supports.

Conduct a test print any time you install new paper or select a new label size. The first print might display alignment issues, such as a split chit, particularly if manual adjustments were made when installing the roll. A second test print should resolve any alignment issues caused by the change in paper size, ensuring that subsequent prints are properly aligned and free of errors.

Note: The printer is designed to automatically adjust to a new roll size, so manual realignment is not required. Only proceed with manual adjustments if you encounter persistent alignment issues after the second test print.
