Toast Flex 3 Hardware Compatibility

In this Article:

• Flex 3 Compatibility Overview
• Upgraded Device Compatibility
• Toast Flex 3 Upgrade Scenarios
• Connect the Toast Flex 3 Terminal With the Flex 3 Hardware
• Connect Flex 3 Terminal With Previous Flex Hardware
• Connect Flex 14” With Flex 3 Hardware
• Additional Resources

Flex 3 Compatibility Overview

Flex 3 features an upgraded system architecture designed in accordance with USB standards, which adds flexibility to configurations, future-proof devices, and enables more powerful and reliable system performance. Notes on device compatibility:

• Power adapters will not be interchangeable. The TP300 Printing Hub uses a 100W power adapter, and the Flex 3 terminal uses a 65W adapter.
• Guest Displays are not cross-compatible between Flex 14 and Flex 3.
• Printers are not fully cross-compatible and have different features when used across terminal generations:
  • TP300 Printing Hub supports network printing and Ethernet over an RJ45 connection. When connected to a Flex 14 terminal, a Printing Hub Adapter is required to enable power and Ethernet over USB, USB printing, and USB peripheral networking.
  • TP200 Printer connected to a Flex 3 terminal supports power over USB, printing over the network and Ethernet over the RJ45 cable. Its USB connection does not pass data, so USB peripherals (card readers, scanners, scales) connected to the TP200 will not work with a Flex 3 — see the Connect Flex 3 Terminal With Previous Flex Hardware section below.
• Card readers will be cross-compatible, including multiple USB-A, micro USB, and USB-C connectors across the Flex 3 Terminal, Guest Display, and Printing Hub.
• Cash drawers are cross-compatible between Flex 14” (Gen 2) and Flex 3 (Gen 3) hardware.
• Toast Handhelds that operate on the same network as the Terminals and Printers below will maintain the same compatibility.

Back to top

Upgraded Device Compatibility

If you are upgrading from a Flex 14” device to a Flex 3 device, the information below helps you understand which hardware works best with your current setup.

What to Know Before You Upgrade Your Devices

• Toast card readers work across devices and do not need to be replaced when upgrading.
• These examples focus on standard upgrade paths and do not include repair or replacement situations.
• Retail setups follow the same compatibility guidance outlined below. Mounting options may vary depending on your Kitchen Display System (KDS) or Kiosk configuration.

Back to top

Toast Flex 3 Upgrade Scenarios

POS Terminals

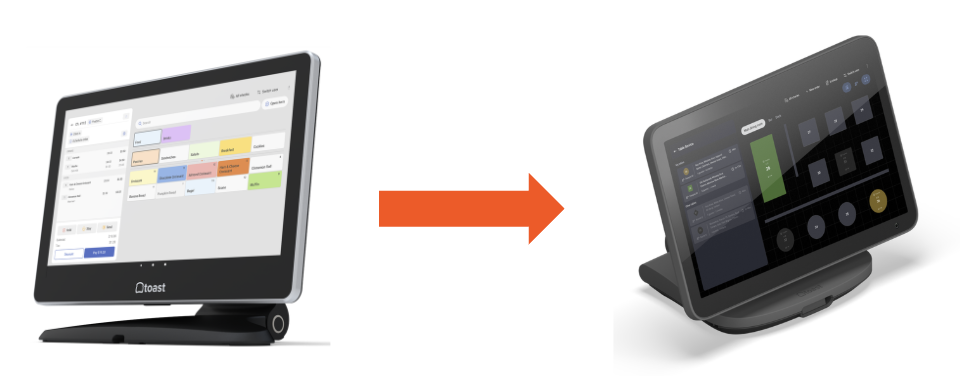

• If you are replacing a Flex 14” terminal without a guest display or receipt printer,
  • Then the Flex 3 Countertop Terminal is the recommended replacement.
• If your Flex 14” setup includes a guest-facing display,
  • Then, replacing with a Flex 3 Guest Display Terminal is recommended.
• If your Flex 14” setup includes a Toast receipt printer,
  • Then the Flex 3 Terminal is the recommended replacement, and adding the TP300 Printing Hub will enable all features (see note on Printers above).

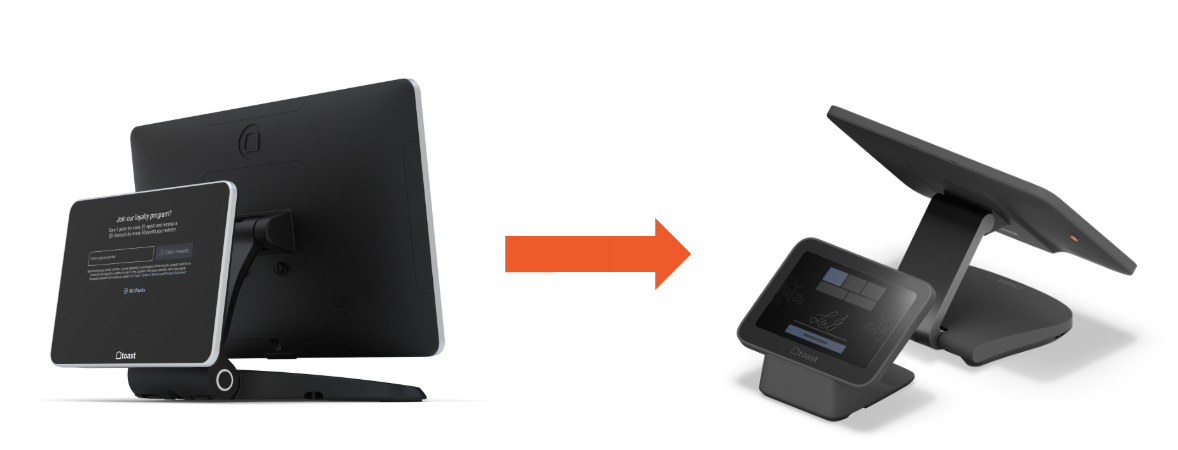

• If your Flex 14” setup includes both a guest display and a Toast receipt printer,
  • Then, a Flex 3 Terminal and Guest Display paired with a TP300 Printing Hub is recommended.

Note: These upgrade paths also apply to Elo terminals. Epson printers print over the network and do not need to be replaced. Existing mounts and stands can typically be reused or updated as needed.

Back to top

Guest Displays

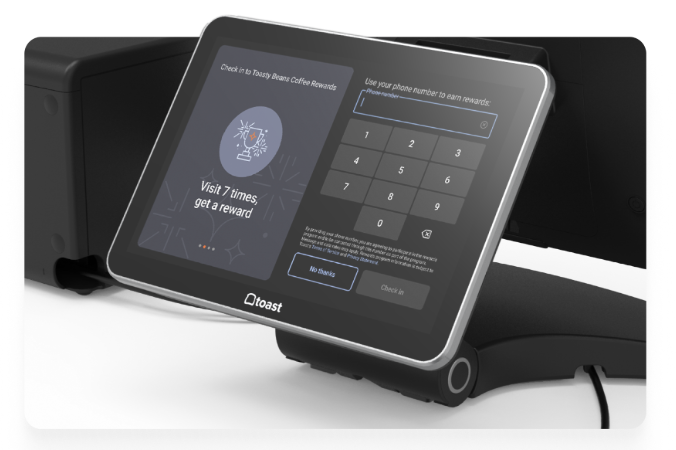

• If you are replacing an 8” Flex for Guest Terminal (Gen 2) — whether Direct-Attach (DA) or wedge-mounted — the Flex 3 Guest Display Terminal is the recommended replacement in both cases.

Note:

• The Flex 3 Guest Display is designed to work with Flex 3 terminals only. It cannot be used with Flex 14” devices and cannot be used on its own unless you already have a Flex 3 terminal or display.
• A longer guest display cable may be helpful for unique counter layouts or extended reach.

Back to top

Receipt Printing

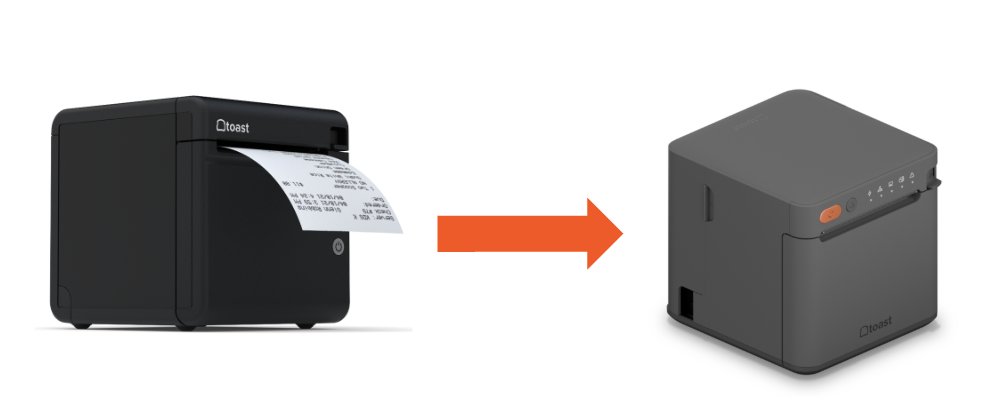

• If you are replacing a TP200 Receipt Printer,
  • then TP300 Printing Hub with a Printing Hub Adapter is the best solution if connected to a Flex 14 terminal.
• TP200 printers configured with language packs are not compatible with the Toast Flex 3. Note also that a TP200 can only pass power through to a Flex 3 - it does not pass ethernet or USB - so a TP200 cannot serve as the Flex 3's network connection.
• If you are adding a TP300 Printing Hub to a POS or Kiosk setup,
  • then Printing Hub supports receipt printing with Flex 3 terminals, or other compatible Toast devices on the same network (e.g., Toast Go® 3).

Note: While printing receipts over the network will work the same with the Printing Hub, the USB cable will not provide the same functionality when connected to Flex 14”. To maintain power and networking functionality, the best approach is to connect another TP200 receipt Printer with Flex 14” or purchase the Printing Hub Adapter for Flex 14 for full compatibility.

Back to top

Kitchen Display Systems (KDS)

• If you are upgrading a Flex 14” Kitchen Display, there are two options:
  • Reuse your existing mount or stand, or
  • Install a new Toast Mount or Toast Stand

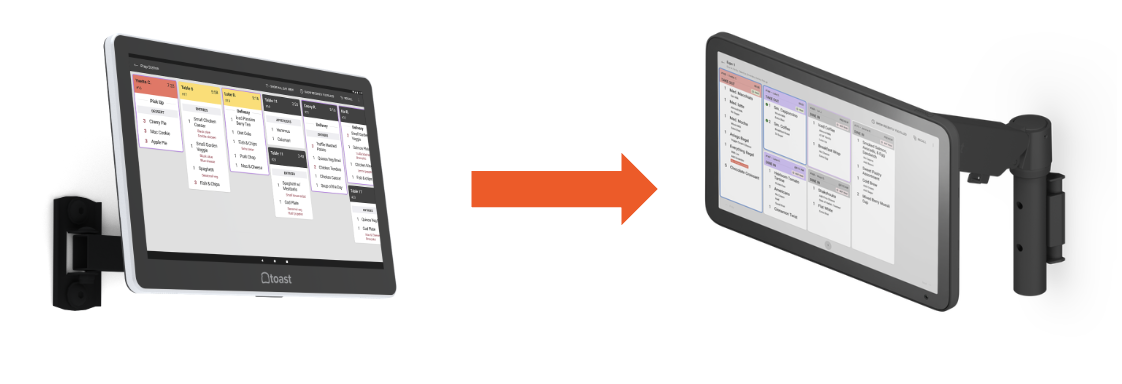

• If you are replacing a Flex 14” Kitchen Display AND REUSING the wall mount,
  • Then the Flex 3 Display is a compatible replacement.
    • Tip: Flex 3 Displays are compatible with standard 75x75 VESA mounts.
• If you are replacing a Flex 14” Kitchen Display AND replacing the wall mount or mounting to another surface (e.g. pole or shelf),
  • Then, a Flex 3 KDS with Toast Mount is recommended.
• If you are replacing a Flex 14” Kitchen Display AND a stand,
  • Then, a Flex 3 KDS Countertop option is recommended.

Back to top

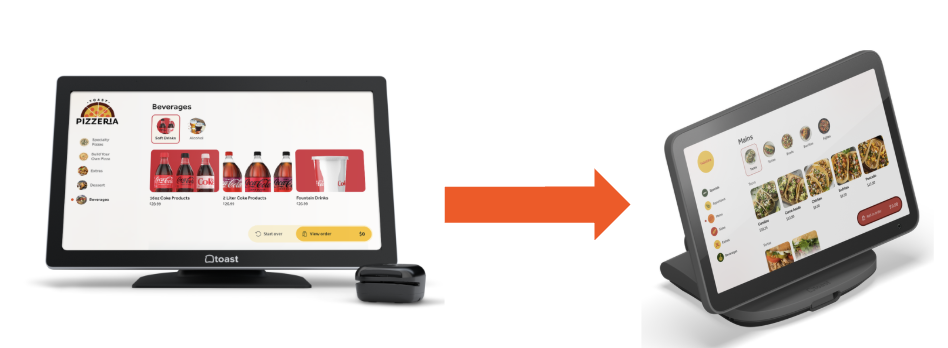

Kiosks

Note: The Kiosk image above to the right is the Toast Flex 3 Countertop Terminal Kiosk.

• If you are upgrading a Flex 14” Kiosk that includes a receipt printer and an existing mount or stand,
  • then a Flex 3 Display paired with a Printing Hub is recommended.
  • Or you can also use the Flex 14 display with the TP300 Printing Hub with a Printing Hub Adapter for the Flex 14.
• If your kiosk is wall-mounted and does not include a printer,
  • then a Flex 3 Display with a compatible wall mount provides a seamless upgrade.
• If your kiosk uses a counter stand and does not include a printer,
  • then a Flex 3 Countertop Terminal is recommended.

Back to top

Connect the Toast Flex 3 Terminal With the Flex 3 Hardware

Flex 3 Terminal	Hardware Name	Hardware Image	Compatibility
	Toast Printing Hub

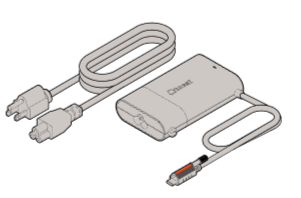

	65W Power Supply

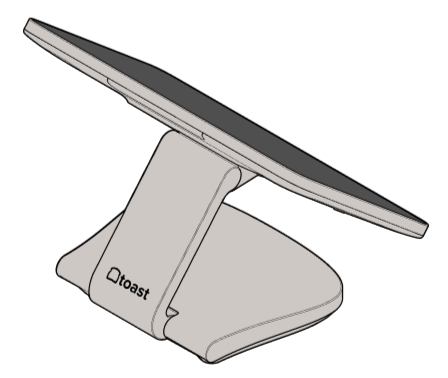

	Flex 3 Guest Display

Back to top

Connect Flex 3 Terminal With Previous Flex Hardware

Flex 3 Terminal	Hardware Name	Hardware Image	Compatibility

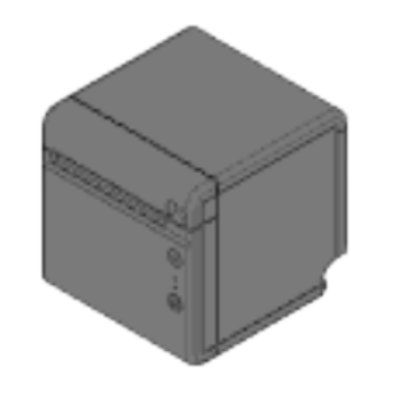

	Toast Receipt Printer TP200   Note: The following steps must be followed to ensure compatibility with the Flex 3 Terminal and Toast Receipt Printer (TP200). For USB Hub Compatibility, see Toast-Approved USB Hubs for Toast Flex 3 Hardware. Plug in and set up the Toast Receipt Printer (TP200) following the steps outlined in the TP200 Toast Printer Quick Start Guide. Run the Ethernet cable from the TP200 to the Flex 3 Terminal (for network). Run the USB-C cable from the TP200 to the Flex 3 Terminal (for power). Note: When the TP200 is connected to the Flex 3 Terminal, its USB port is used only for power — USB peripherals such as card readers, scanners, and scales that were previously daisy-chained through the TP200 on a Flex 14” setup will not work through the TP200 on Flex 3. Connect those peripherals directly to the Flex 3 Terminal or Printing Hub instead.
	Toast Flex for Guest (Gen 2)
	Flex 14” 100W Power Supply

Back to top

Connect Flex 14” With Flex 3 Hardware

Flex 14"	Hardware Name	Hardware Image	Compatibility
	Toast Printing Hub (used with Adapter for Flex 14”)
	Flex 3 Guest Display
	65W Power Supply

Back to top
