Toast Flex 3 Hardware Compatibility

In this Article:

• Overview
• Upgraded Device Compatibility
• What to Know Before You Upgrade Your Devices
• Toast Flex 3 Upgrade Scenarios
  • POS Terminals
  • Guest Displays
  • Receipt Printing
  • Kitchen Display Systems
  • Kiosks
• Connect the Toast Flex 3 Terminal With the Flex 3 Hardware
• Connect Flex 3 Terminal With Previous Flex Hardware
• Connect Flex 14” With Flex 3 Hardware
• Additional Resources

Flex 3 Compatibility Overview

Flex 3 features an upgraded system architecture designed in accordance with USB standards, which adds flexibility to configurations, future-proof devices, and enables more powerful and reliable system performance. Notes on device compatibility:

• Power adapters will not be interchangeable. The TP300 Printing Hub uses a 100W power adapter, and the Flex 3 terminal uses a 65W adapter.
• Guest Displays are not cross-compatible between Flex 14 and Flex 3.
• Printers are not fully cross-compatible. Some functionality will be maintained, but the best approach is to use the TP300 Printing Hub with Flex 3 and the TP200 Receipt Printer with Flex 14.
• Card readers will be cross-compatible, including multiple USB-A, micro USB, and USB-C connectors across the Flex 3 Terminal, Guest Display, and Printing Hub.
• Toast Handhelds that operate on the same network as the Terminals and Printers below will maintain the same compatibility.

Upgraded Device Compatibility

If you are upgrading from a Flex 14” device to a Flex 3 device, the information below helps you understand which hardware works best with your current setup.


What to Know Before You Upgrade Your Devices

• Toast card readers work across devices and do not need to be replaced when upgrading.
• These examples focus on standard upgrade paths and do not include repair or replacement situations.
• Retail setups follow the same compatibility guidance outlined below. Mounting options may vary depending on your Kitchen Display System (KDS) or Kiosk configuration.

Toast Flex 3 Upgrade Scenarios

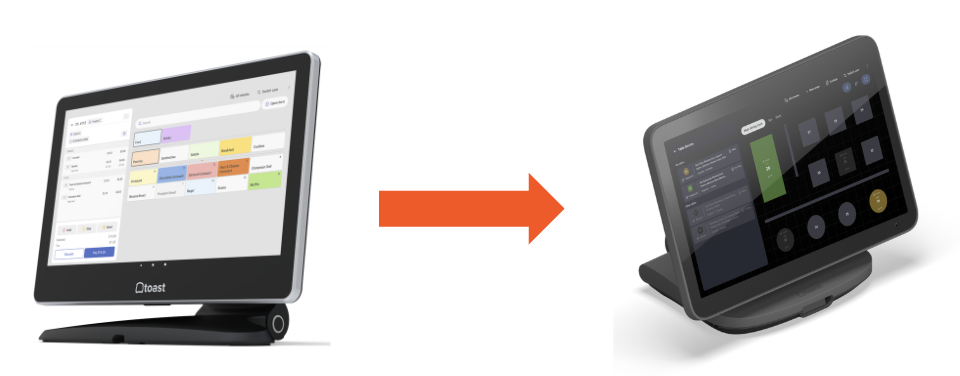

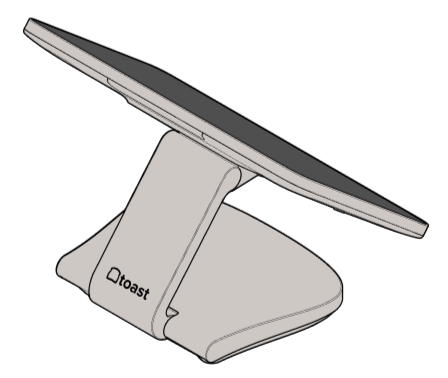

POS Terminals

• If you are replacing a Flex 14” terminal without a guest display or receipt printer,

  • Then the Flex 3 Countertop Terminal is the recommended replacement.
• If your Flex 14” setup includes a guest-facing display,

  • Then, a Flex 3 Guest Display Terminal is recommended.
• If your Flex 14” setup includes a Toast receipt printer,

  • Then upgrading to a Flex 3 Countertop Terminal with a Printing Hub provides the best experience.
• If your Flex 14” setup includes both a guest display and a Toast receipt printer,

  • Then, a Flex 3 Guest Display Terminal paired with a Printing Hub is recommended.

Note: These upgrade paths also apply to Elo terminals. Epson printers print over the network and do not need to be replaced. Existing mounts and stands can typically be reused or updated as needed.

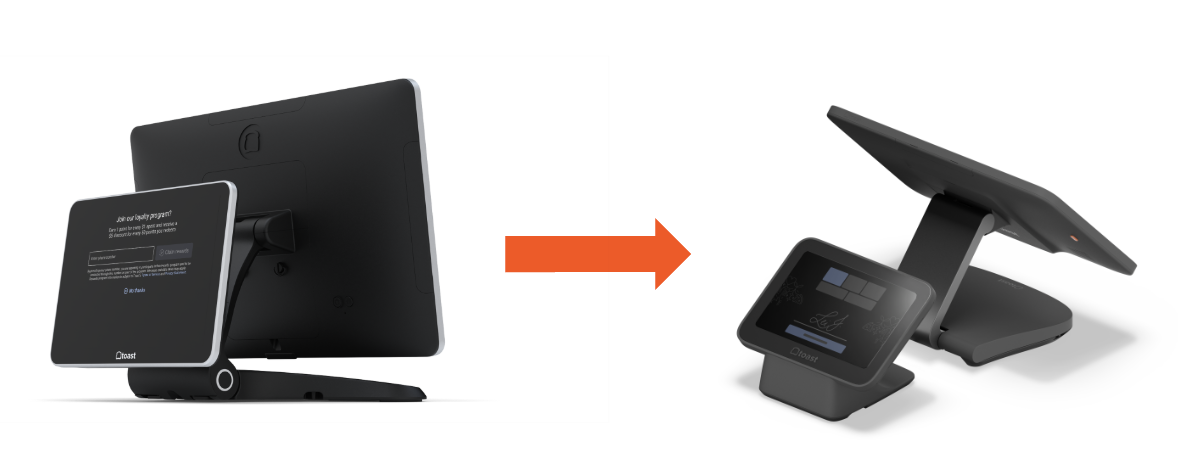

Guest Displays

• If you are replacing an 8” Flex for Guest Terminal (attached or wedge),

  • Then the Flex 3 Guest Display Terminal is recommended.


Note: The Flex 3 Guest Display is designed to work with Flex 3 terminals only. It cannot be used with Flex 14” devices and cannot be used on its own unless you already have a Flex 3 terminal or display.

Tip: A longer guest display cable may be helpful for unique counter layouts or extended reach.

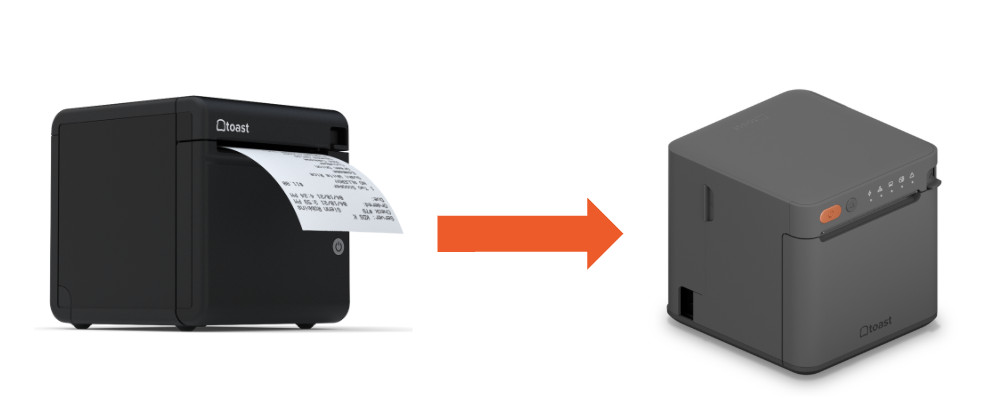

Receipt Printing

Note: To maintain an Internet connection when using the Printing Hub (TP300) with Flex 14, use one of the following approaches:

• Connect an RJ45 cable from the Printing Hub (TP300) to Flex 14
• Connect Flex 14 to Wi-Fi (the same network as the RJ45 connecting Printing Hub TP300)
• Connect separate RJ45 cables to Flex 14 and Printing Hub TP300

• If you are replacing a Toast Receipt Printer or adding receipt printing to a POS or Kiosk setup,
• Then the Printing Hub supports receipt printing with Flex 3 terminals, or other compatible Toast devices on the same network (e.g., Toast Go® 3).


Note: While printing receipts over the network will work the same with the Printing Hub, the USB cable will not provide the same functionality when connected to Flex 14”. To maintain power and networking functionality, the best approach is to connect another Toast receipt Printer with Flex 14”.

Kitchen Display Systems (KDS)

• If you are upgrading a Flex 14” Kitchen Display, there are two options:

  • Reuse your existing mount or stand, or
  • Install a new Toast Mount or Toast Stand
• If you are replacing a Flex 14” Kitchen Display AND REUSING the wall mount,

  • Then the Flex 3 Display is a compatible replacement.

    • Tip: Flex 3 Displays are compatible with standard 75x75 VESA mounts.
• If you are replacing a Flex 14” Kitchen Display AND replacing the wall mount or mounting to another surface (e.g. pole or shelf),

  • Then, a Flex 3 KDS with Toast Mount is recommended.
• If you are replacing a Flex 14” Kitchen Display AND a stand,

  •  Then, a Flex 3 KDS Countertop option is recommended.

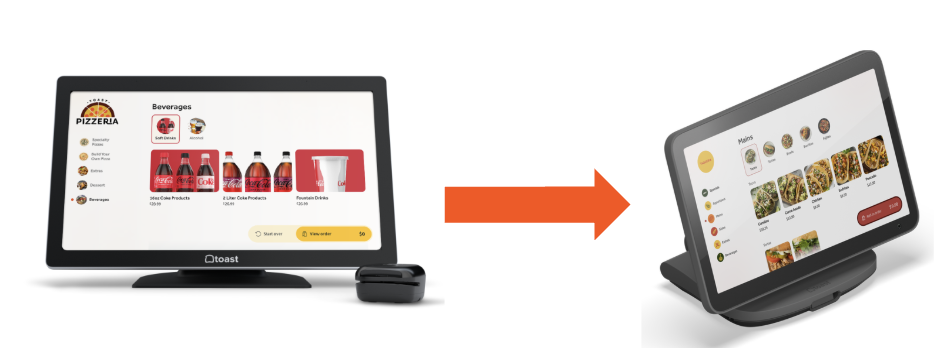

Kiosks

Note: The Kiosk image above to the right is the Toast Flex 3 Countertop Terminal Kiosk.

• If you are upgrading a Flex 14” Kiosk that includes a receipt printer and an existing mount or stand,

  • Then a Flex 3 Display paired with a Printing Hub is recommended.
• If your kiosk is wall-mounted and does not include a printer,

  • Then a Flex 3 Display with a compatible wall mount provides a seamless upgrade.
• If your kiosk uses a counter stand and does not include a printer,

  • Then a Flex 3 Countertop Terminal is recommended.

Connect the Toast Flex 3 Terminal With the Flex 3 Hardware

Flex 3 Terminal	Hardware Name	Hardware Image	Compatibility

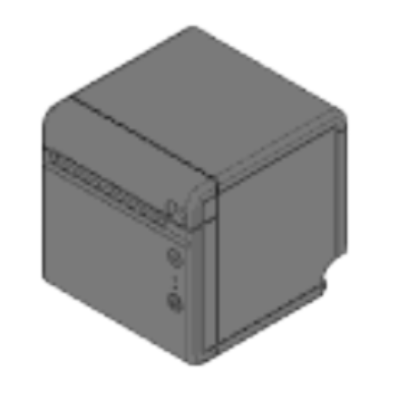

	Toast Printing Hub

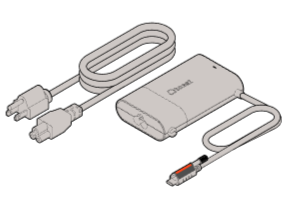

	65W Power Supply

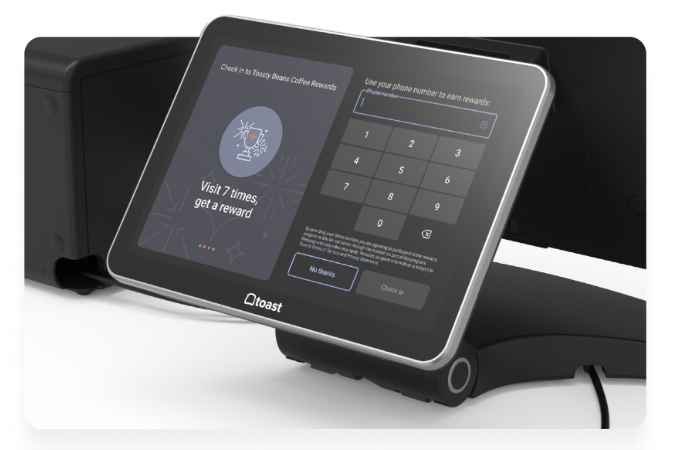

	Flex 3 Guest Display

Connect Flex 3 Terminal With Previous Flex Hardware

Flex 3 Terminal	Hardware Name	Hardware Image	Compatibility
	Toast Receipt Printer TP200     Note: The following steps must be followed to ensure compatibility with the Flex 3 Terminal and Toast Receipt Printer (TP200). For USB Hub Compatibility, see . Plug in and set up the Toast Kitchen Printer (TP200) following the steps outlined in the Run the Ethernet cable from the TP200 to the Flex 3 Terminal (for network). Run the USB-C cable from the TP200 to the Flex 3 Terminal (for power).
	Toast Flex for Guest
	65W Power Supply

Connect Flex 14” With Flex 3 Hardware

Flex 14"	Hardware Name	Hardware Image	Compatibility
	Toast Printing Hub
	Flex 3 Guest Display
	65W Power Supply
